Uncovering the Secrets of Forklift Connectors: A Complete Guide

Hello everyone, today I want to share with you a super cool theme - Forklift Connectors! Moreover, in my unique way, I will bring you some surprises and let you appreciate the charm of this theme.

Are you ready? Then let's start exploring the wonderful world of Forklift Connectors!

The role of forklift connectors

The role of forklift connectors is to provide power sockets to facilitate the connection of electrical equipment in scenarios where power is required. Forklift connectors are usually designed for logistics equipment such as forklifts and stackers to provide drivers with a reliable power supply during operation. These plug-ins can connect various electrical devices, such as lamps, tools, chargers, etc., to provide necessary power support for the workplace.

Power supply support

Forklift connectors can supply power to equipment on the forklift, such as lights, radios, etc. By inserting the plug, the power can be transmitted to the corresponding equipment to ensure its normal operation.

Charging function

Some forklift connectors have a charging function, which can provide a charging interface for electric equipment (such as power tools, handheld terminals, etc.), so that the equipment can keep sufficient power during work.

Multi-functional application

Forklift connectors usually integrate multiple functions, such as USB interface, flash light, overload protection, etc. These functions can meet more needs and provide additional convenience and safety.

Classification of forklift contactors

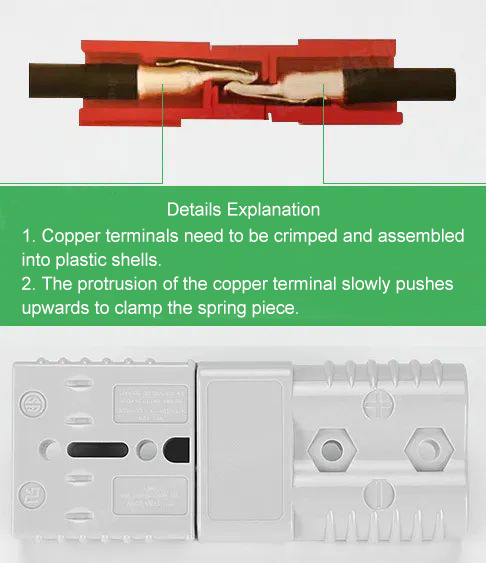

1 .American standard connectors

Aliases for connectors:  Plugs, connectors, joints, sockets, etc.

Applications:  Widely used in electric forklifts, golf carts, tour buses, electric cruise ships, electric floor scrubbers, mining electric locomotives, UPS uninterruptible power supplies, power communication and railway systems and other products.

The main feature of American standard connectors is that they do not distinguish between male and female heads

Brand: Anderson, SMH

Specifications: 50A, 120A, 175A, 350A

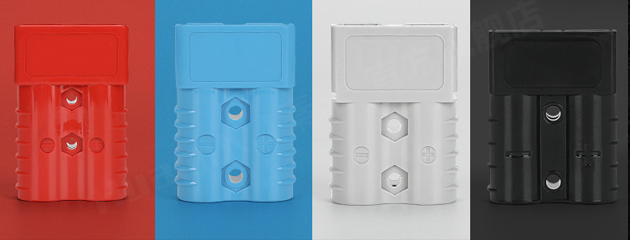

Colors: gray, red, blue, green, black, yellow, etc.

Composition: one shell + 2 terminals

Two-core connectors can be plugged in. Different colors are used abroad to distinguish different voltages. For example, gray, blue, and red correspond to different voltages. Domestic plugs do not care about these, and gray is used more.

SBX plugs match different slots, and different colors cannot be plugged in.

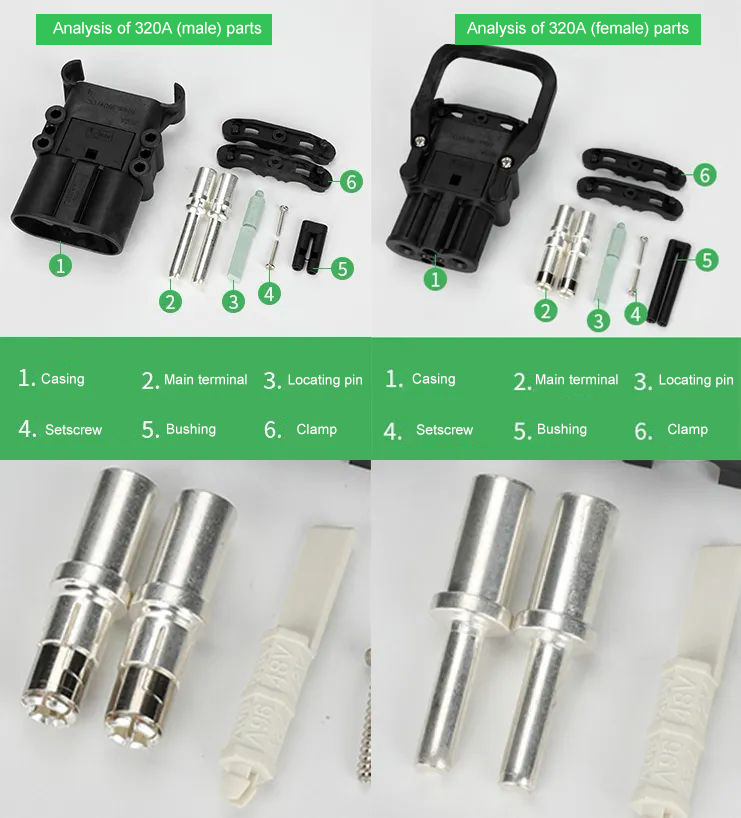

2.German standard connectors

The main feature of German standard connectors is the distinction between male and female heads

Brand: REMA, UMA

Specifications: 80A, 160A, 320A

Color: Black

How to distinguish between male and female heads: Look at the terminals, solid terminals are male, and terminals with holes are female. Generally, the male head is without a handle, and the female head is with a handle

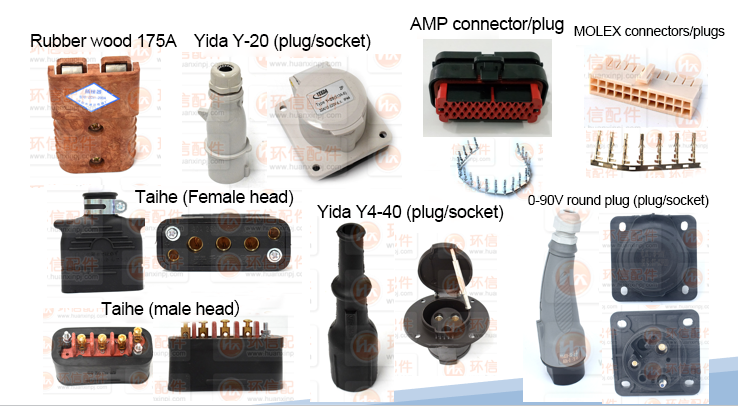

3.Other connector plug

What should I pay attention to when purchasing?

Compatibility:

Make sure the forklift connector you purchase is compatible with the forklift model you are using. Different forklifts may have different socket types and power requirements, so it is important to make sure the plug-in you purchase is suitable for your specific forklift model.

Functional requirements:

Choose the right forklift connector according to your specific needs. Some plug-ins may have additional functions, such as USB interface, flashing light, overload protection, etc. Choose the function that suits your needs according to your working environment and usage scenarios.

Safety:

Make sure the forklift connector has the necessary safety protection measures. Some plug-ins may have functions such as overload protection and short circuit protection to protect your equipment from damage and potential dangers of power problems.

Brand reputation and after-sales service:

Choose forklift connectors from well-known brands, which usually have a good reputation and reliable after-sales service. This ensures that you can get support and solutions in time when you encounter problems during use.

Cost-effectiveness:

In addition to considering price, you should also consider the function, quality and durability of the forklift connector. Choose the most cost-effective products that meet your needs to get long-term value.

Quality and Durability:

Choose high-quality forklift connectors to ensure durability and reliability. Low-quality connectors may damage electrical equipment and may also cause circuit failures and safety issues.

When purchasing forklift connectors, try to buy them from professional equipment suppliers, logistics equipment suppliers or reliable online markets. Before purchasing, read product descriptions, reviews and comments, and understand the feedback and suggestions of other users to help make a more informed purchasing decision.

If you need forklift connectors, you can contact us directly！
